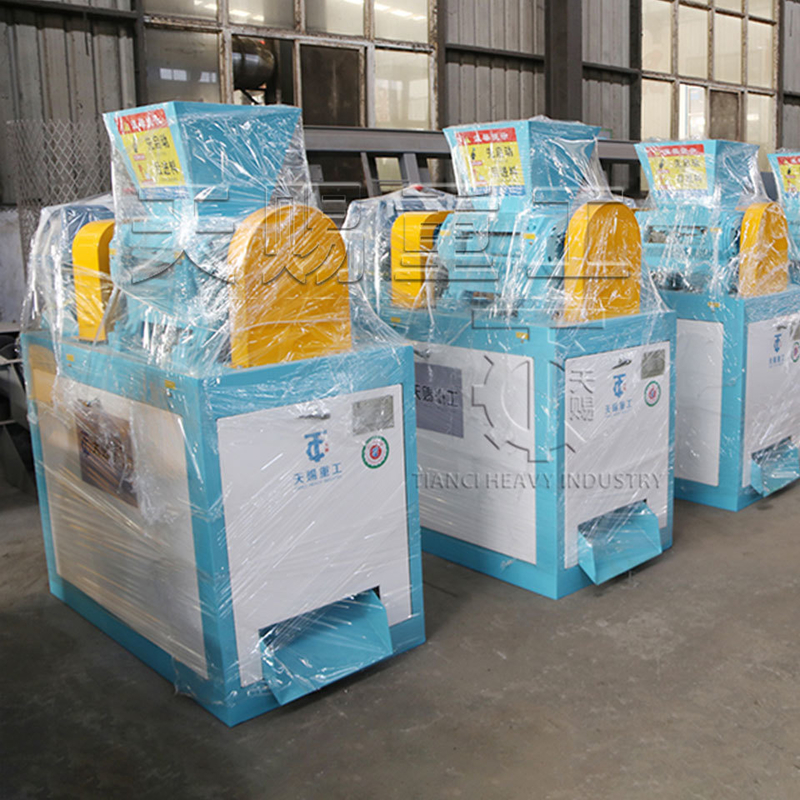

TIANCI series double roller granulator,granulation at normal temperature,high forming rate.It can produce oblate particles with φ2-φ10mm and various sheet products. It is widely used in the granulation of powder raw materials such as fertilizer,medicine and chemical industry,especiallyfor the production of granular fertilizer such as ammonium sulfate,ammonium chloride,potassium chloride,potassium sulfate,salt,compound fertilizer,binary and ternary compound fertilizer(Total nutrient content (N+P₂O₅+K₂O) of 25%-53%).Our company can customize the fertilizer granulation line with an annual output of 30,000-500,000 tons according to customers'requirements.The complete set of equipment has compact process layout,scientific and reasonable,advanced technology,energy saving and consumption reduction,environmental protection,stable operation and convenient maintenance.
Display of finished product granules:
Working Principle
The granulator is mainly divided into feeding part,compaction part,crushing part and screening part.The raw materials are continuously fed into the feeding part by the upper bin to be broken up,so that the materials are evenly fed into the middle of the double roller.The gap between the two rolls can be adjusted properly.At the same time,in order to ensure that the cavities on the two rolls can be completely aligned,one of the rolls can be adjusted properly from left to right.The compaction part is mainly composed of motor,belt transmission device,special reducer for hard tooth surface,coupling,drive wheel,bearing seat,bearing,roll,gear,etc.

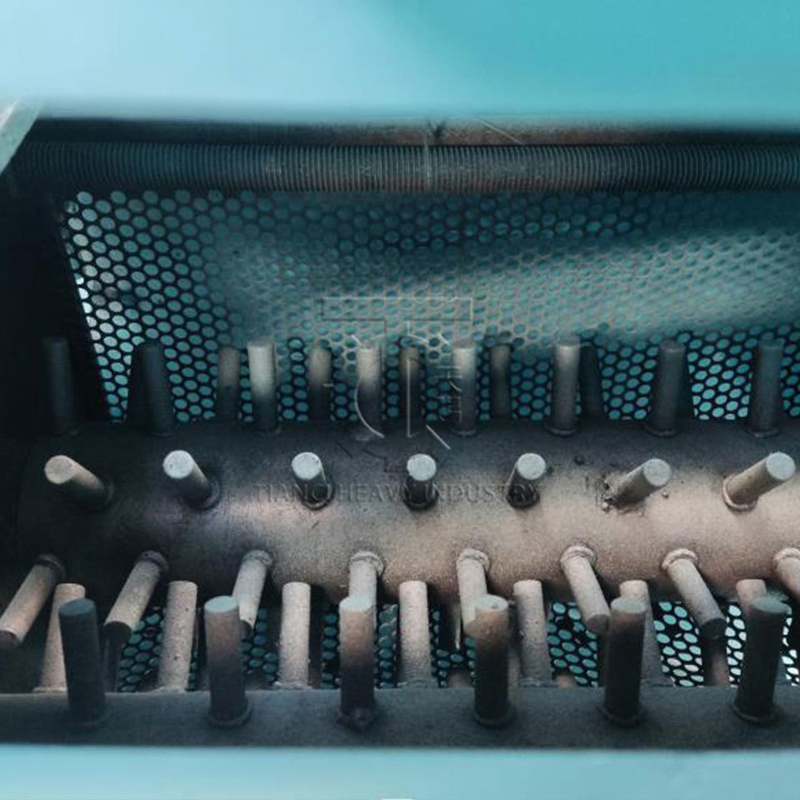

The crushing part is mainly to break up the flake material into granules,which is mainly composed of motor, transmission device,gear,bearing seat,bearing,and teeth breaking.
The roll of this equipment is alloy steel,and the material of the breaking teeth is stainless steel.HT200 casting is selected for the base plate and bearing seat of the main part for consideration of corrosion resistance and stability.The material of hopper and outlet is stainless steel,and other materials are Q235.
The surface hardness of the roller after surface thermal treatment reaches HRC60-65.However,due to the large amount of granulation,some of them will wear after a certain period of time,so they can no longer be granulated.Because the rolls in this equipment are vulnerable parts,they need to be replaced after a certain production cycle.
Technical Parameters
| Model |
DZJ-1.5T |
| Motor Power |
15kw |
| Output |
Oblate shape |
| Capacity |
1-1.5 t/h |
| Roller |
Forged with alloy steel,heat treatment in special process,the surface of press roll can be plated with hard chromium to have rustproof and wear-resistant treatment. |
| Rate of finished product |
Oblate shape 60-90% |
| Granular diameter |
3-10mm |
| Moisture of raw material |
Inorganic materials:2-5%,organic materials:6-12% |
| Working temperature |
Normal temperature |
| Applicable materials |
Ammonium carbonate,ammonium chloride,ammonium sulfate,ammonium phosphate,calcium magnesium phosphate,potassium chloride,potassium nitrate,potassium sulfate, humic acid,magnesium sulfate,zinc sulfateas well as all kinds of organic matters,etc. |
Process Technology
The process of TIANCI equipment is usually composed of four sets in a group. The two process flow diagrams below both pertain to dry granulation processes.
