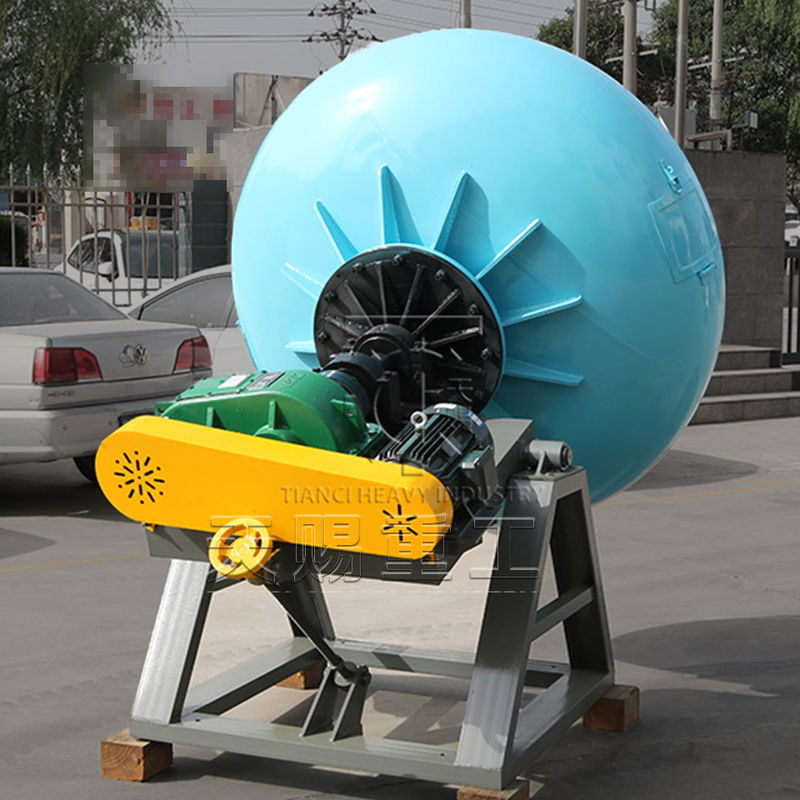

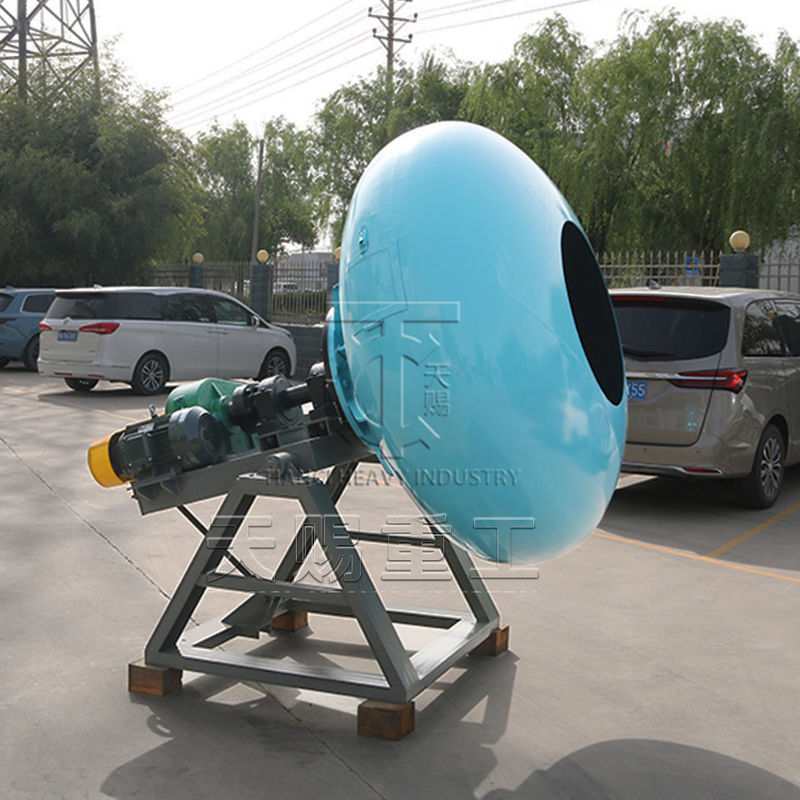

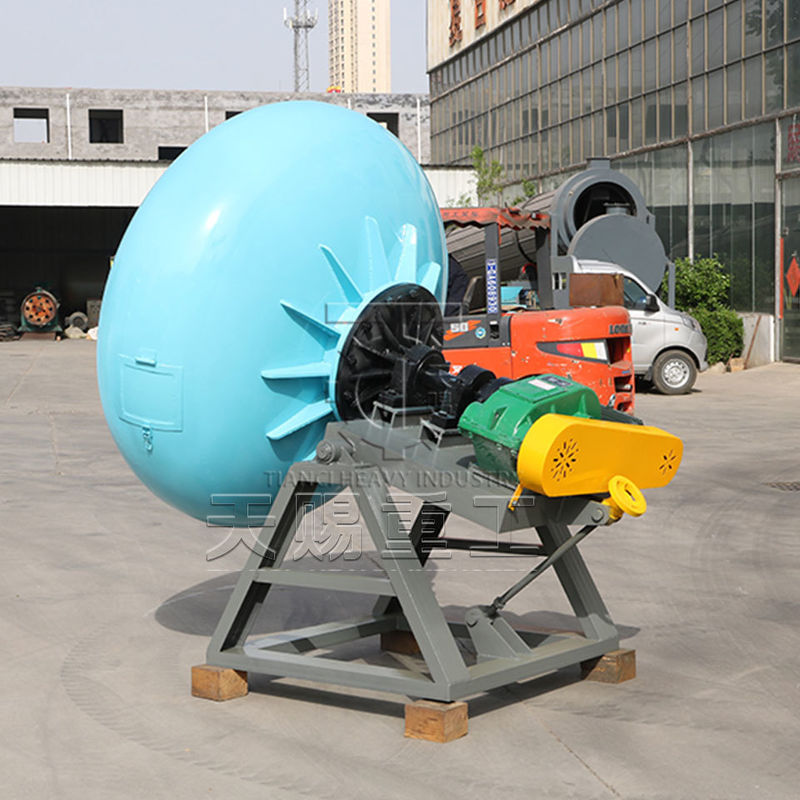

Spherical Pellet Granulator Pot Pelletizer In Pelletizing Production Line

　　Spherical pellet granulator pot pelletizer in pelletizing production line

Description:

　　TIANCI brand pot pelletizer has low energy consumption, easy to control the size of pellets and good strength. Its pot diameter from 0.8m-3.6m, according to the pot diameter, can meet the hourly 0.1t/h to 10t/h granulation production needs. The company's pot granulator is organic fertilizer powder, compound fertilizer powder, phosphate powder, phosphogypsum, shale, clay, sludge, fly ash, slag, etc. as raw materials for granulation equipment, with a uniform size of the ball, high yield, compact equipment, easy to control, smooth operation, etc., can be widely used in phosphate mining, construction, refractory heat preservation, petroleum fracturing proppant and other fields.

Application areas:

　　applied to fertilizer processing particles, cat litter processing particles, mineral powder processing particles, etc., laboratory granulation experiments.

Product Advantage:

　　High rate of ball formation, and the finished material ball size uniformity, high strength.

　　Adopt frequency conversion motor, easy to adjust the speed according to the process needs.

　　The base adopts integrated structure design, smooth running, low noise.

　　Low failure, high production efficiency and long service life.

Technical Parameter　　

Working principle of pot granulator

　　The working principle of pot granulator is that the transmission device drives the cylinder body to rotate through the bridge device, and the axis of the cylinder body is at a specific angle with the horizontal plane; when the powder is added into the cylinder body through the inlet, it starts to spray water to the inside of the cylinder body, and the wet powder gradually forms the nucleus of the ball while tumbling, and the ball nucleus of the wet surface grows up to become a granule under the continuous tumbling, friction, and collision; when the granule size reaches the requirement, it is unloaded through the unloading door. When the particle size reaches the requirement, it will be discharged through the discharge gate.

Customer Case

　　Annual output of 10,000 tons of cat litter granulation pilot project

　　Address: Yichang, Hubei

　　Equipments provided] φ600 pot-type granulator

　　Zinc powder processing granule project

　　Project address: Panzhihua, Sichuan

　　Equipment name]: φ1200-ZL25 pot granulator

　　Production capacity] 3-5m³/h

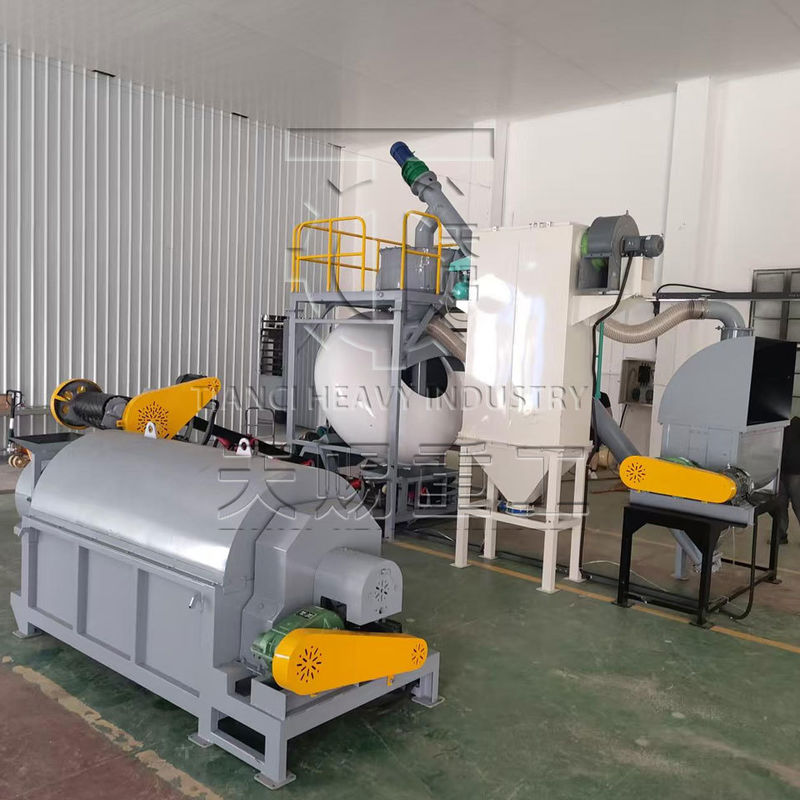

Production scene of Tianci Heavy Industry

Delivery

.FAQ

Q: What are the typical raw materials used in pot  pelletizer pelletizing production line?
A: The raw materials used in the Organic Fertilizer Granules Production Line include compost manure, farm waste, city garbage, and other organic materials.
Q: What is the capacity range of this pot granulator?
A: The capacity of the  pot granulator ranges from 0.2 to 30 tons per hour.
Q: What is the maximum allowable humidity level for raw materials in this pot type pelletizer?
A: The maximum allowable humidity level for raw materials in this pot type pelletizer is ≤30%.
Q: Is this production line automated?
A: Yes, the Organic Fertilizer Granules Production Line is fully automatic, minimizing manual intervention and maximizing efficiency.
Q: What are the key steps involved in the production process?
A: The production process of the Organic Fertilizer Granules Production Line includes crushing, mixing, granulating, screening, and packaging.
Q: What is the shape of the granules produced by this production line?
A: The granules produced by the Organic Fertilizer Granules Production Line have a ball-type shape.
