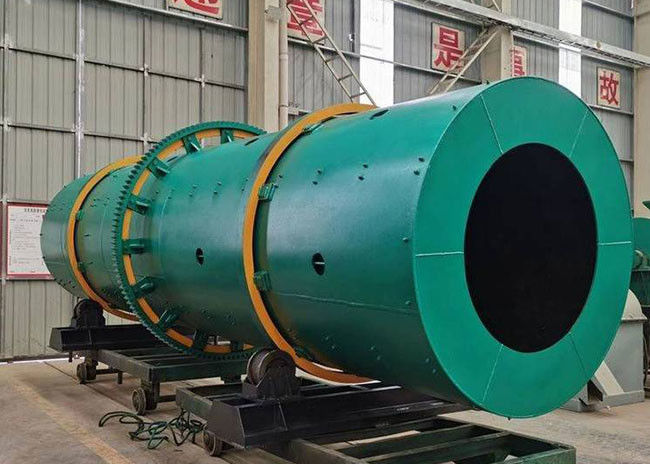

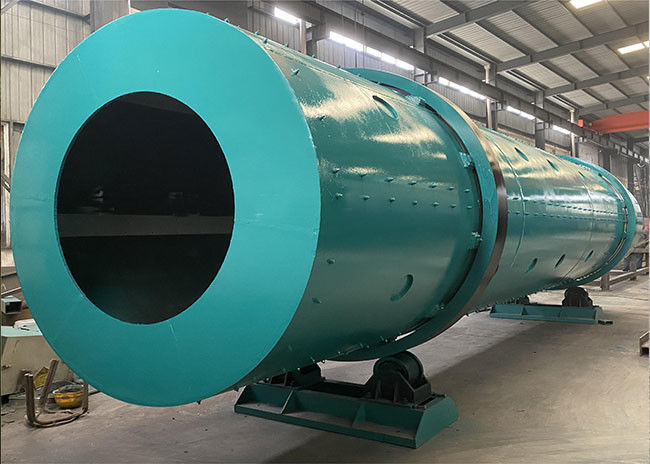

Kaolin Chemical Granulation Organic Compound Fertilizer Rotary Drum Granulator

Product Description:

The rotary drum granulator is a molding machine that can make materials into specific shapes. The rotary drum granulator is one of the key equipment in the compound fertilizer industry. It is suitable for cold and hot granulation and large-scale production of high, medium and low concentration compound fertilizers. The main working mode is wet granulation. A certain amount of water or steam is used to make the basic fertilizer fully chemically react after being humidified in the cylinder. Under certain liquid phase conditions, the rotating motion of the cylinder is used to make the material particles produce extrusion force and agglomerate into balls. The rotary drum granulator developed by our company's staff with many years of experience in compound fertilizer production has the characteristics of beautiful appearance, simple operation, low energy consumption, long life and convenient maintenance. This product is now available all over the country.

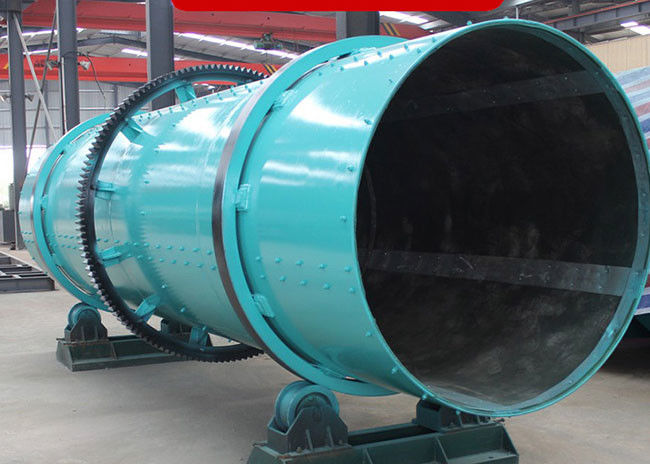

The working principle of this series of rotary drum granulators is: the main motor drives the belt and pulley, which is transmitted to the driving shaft through the reducer, and the split gears installed on the driving shaft mesh with the large gear ring fixed on the machine body, and work in opposite directions. The material is added from the feed end, rotated by the drum, and under certain conditions, it is made into particles and finally flows out through the discharge port. Due to the continuous entry of materials and the continuous rotation of the granulator, mass production can be achieved.

Features:

• Low investment, quick results, good economic benefits, reliable performance.
• Low power, no three wastes, stable operation, convenient maintenance, reasonable process layout, low production cost.
• High ball strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption.
• The ball formation rate reaches 70%, with a small amount of return material, the return material particle size is small, and it can be re-granulated.

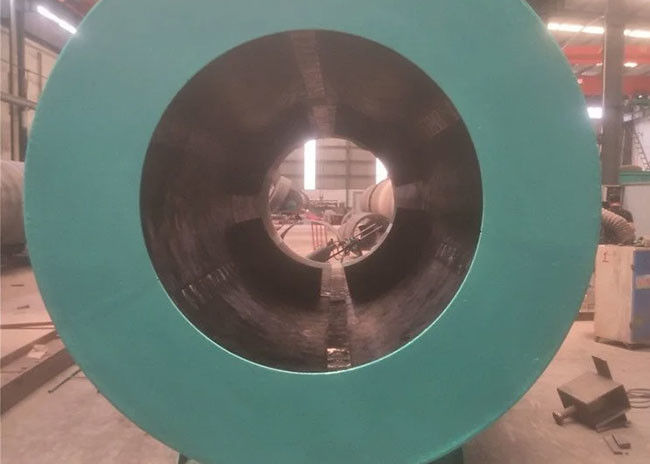

• The cylinder adopts a special rubber sheet lining or acid-resistant stainless steel lining, which realizes automatic scar removal and tumor removal, and eliminates the traditional scraper device.

Technical Parameters:

Applications:

The rotary granulator is suitable for granulating light fine powder materials. The finer the basic particles of the fine powder material, the higher the sphericity of the particles, and the better the balling effect. Generally, the particle size of the material before granulation should be less than 200 mesh. Typical application materials: chicken manure, pig manure, cow manure, charcoal, clay, kaolin, etc.

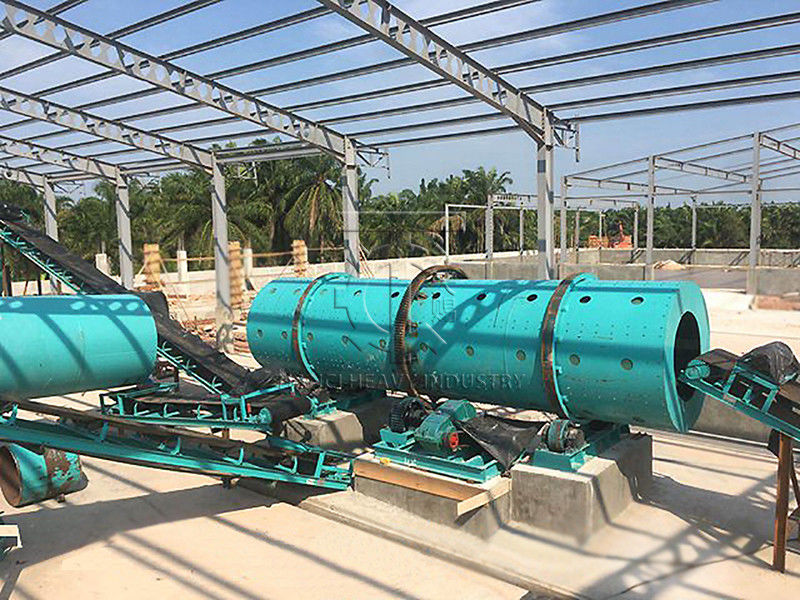

Widely used in compound fertilizer plants, organic fertilizer plants, sludge garbage treatment plants, mining, chemical, cat litter, feed and other industries.

Package and Delivery:

For small single machines, we usually wrap them with protective film and then put them in a sturdy wooden box;

For large equipment or multiple production line equipment, we will place them in containers and secure them with steel wires.

So there's no need to worry about transportation issues.

FAQ

Q: What are your company's advantage ?

A: We are professional fertilizer equipment manufacturer with more than 20 years production experience and 10 years exports experience. We have own factory which can produce high quality equipment with competitive prices.

Q: What information do we need to provide to complete an order ?

A: You should provide us with your fertilizer raw materials and capacity, as well as your production area. Once the quotation content is confirmed, provide us with your destination port.

Q: Do you have customer reviews or case studies available ?

A: Yes, we have many successful overseas cases and customers feedback, such as Uzbekistan, Malaysia, Vietnam, India, Philippines and so on. If you need, you can add my whatsapp number and I will send them to you.

Q: What is your main products ?

A: Our main products include complete equipments of fertilizer production line. There are many types of granulator and some auxiliary equipment (drying&cooling machine, screening machine, coating machine, packaging machine and so on).

Q: How to choose the right fertilizer equipment ?

A: Inder to choose the appropriate equipment, we need to know your fertilizer raw materials and production capacity, so that we can give you a right solution. It’s best for us if you can provide the production area.
