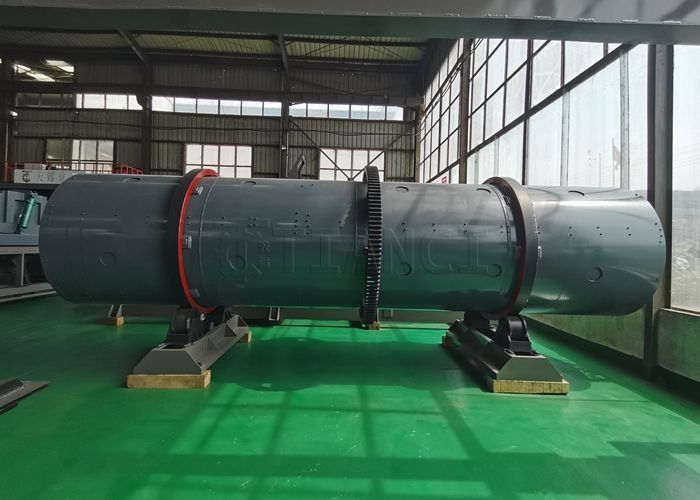

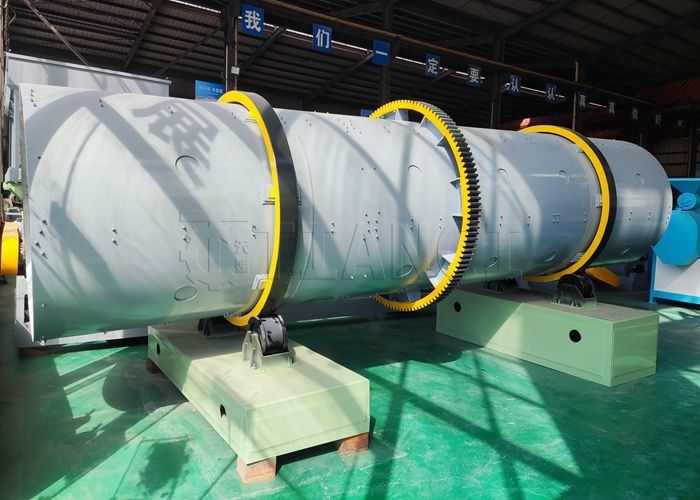

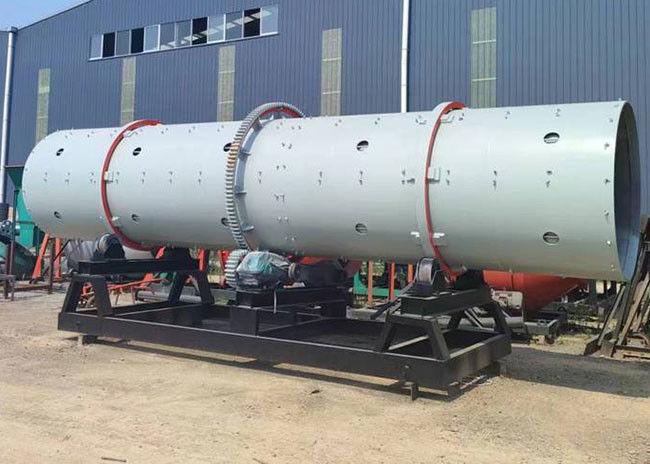

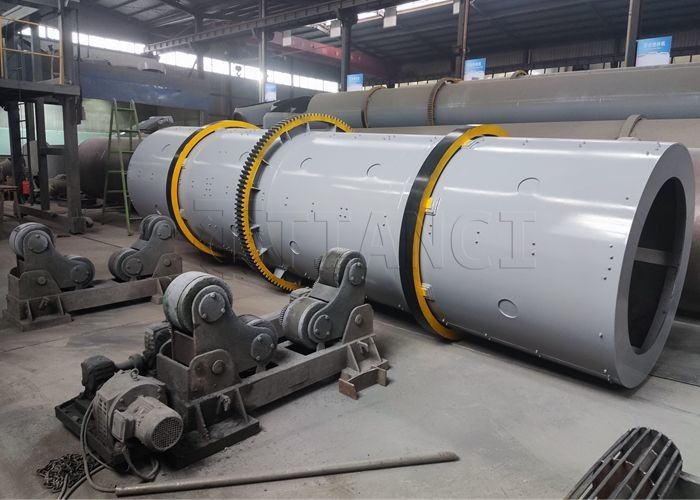

Fertilizer Making Machine Compound Fertilizer Rotary Drum Granulator
Product Description:
The compound fertilizer rotary drum granulator is a molding machine that can make materials into a specific shape. The rotary drum granulator is one of the key equipment in the compound fertilizer industry. It is suitable for cold and hot granulation and large-scale production of high, medium and low concentration compound fertilizers. The rotary drum granulator developed by our company's staff based on many years of experience in compound fertilizer production has the characteristics of beautiful appearance, simple operation, low energy consumption, long life and convenient maintenance. If you want to have compound fertilizer granulation equipment, then the rotary drum granulator must be the best choice.
Features of Compound Fertilizer Rotary Drum Granulator
1. The equipment operates with low power consumption, has no waste emissions, maintains stable operations, allows for easy maintenance, and features a reasonable process layout that reduces production costs.
2. The pellet strength is high, the visual quality is excellent, it exhibits resistance to corrosion and wear, and it has low energy consumption.
3. The pelletization rate achieves 70% with minimal rework, and the particle size of the reprocessed material is small, allowing for re-pelletization.

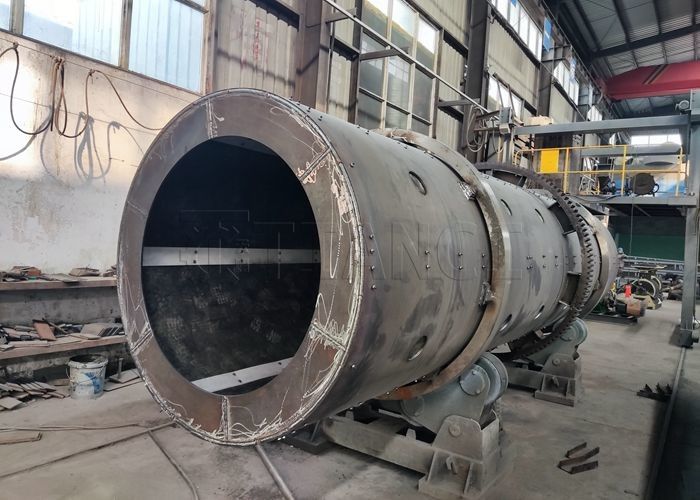

4. The drum employs specialized rubber lining or acid-resistant stainless steel linings, which facilitate automatic scar removal and lump elimination, thereby eliminating the need for traditional scraping devices.
Technical Parameters:
| Model |
Dip angle
(°)
|
Internal diameter
(m)
|
Length
(m)
|
Speed
(r/min)
|
Power
(kw)
|
Capacity
(t/h)
|
Outline dimension
(L*W*H)
|
| ZG1.2*4 |
2-2.5 |
1.2 |
4 |
17 |
5.5 |
1-3 |
4.6*2.2*2.0 |
| ZG1.4*5 |
2-2.5 |
1.4 |
5 |
14 |
7.5 |
3-5 |
4.8*2.8*2.3 |
| ZG1.5*6 |
2-2.5 |
1.6 |
6 |
11.5 |
11 |
5-8 |
7.0*3.2*3.1 |
| ZG1.8*7 |
2-2.5 |
1.8 |
7 |
11.5 |
15 |
8-10 |
8.5*3.5*3.3 |
| ZG2.0*8 |
2-2.5 |
2.0 |
8 |
11 |
18.5 |
10-15 |
9.1*3.6*3.5 |
| ZG2.2*8 |
2-2.5 |
2.2 |
8 |
10.5 |
22 |
15-20 |
9.5*4.4*3.9 |
Applications:
This process is suitable for converting powdered materials into spherical granules. It finds extensive application in organic fertilizer plants, compound fertilizer factories, sludge waste treatment facilities, as well as in mining, chemical, and feed industries.
Drum granulator fertilizer plant
1-20TPH drum fertilizer project taken from our old clients
Package and Delivery:
For small single machines, we usually wrap them with protective film and then put them in a sturdy wooden box;
For large equipment or multiple production line equipment, we will place them in containers and secure them with steel wires.
So there's no need to worry about transportation issues.
Company Qualifications
Zhengzhou Tianci Heavy Industry Machinery Co., Ltd. is an enterprise specializing in agricultural environmental protection technology engineering, equipment development research and production! Its main products are machinery and equipment required for organic, and compound and BB fertilizers with an annual output of 10,000 to 200,000 tons! Especially for the granulation equipment of powder materials, we have more than 20 years of production experience and 10 years export experience.
FAQ
Q: What are your company's advantage ?
A: We are professional fertilizer equipment manufacturer with more than 20 years production experience and 10 years exports experience. We have own factory which can produce high quality equipment with competitive prices.
Q: What information do we need to provide to complete an order ?
A: You should provide us with your fertilizer raw materials and capacity, as well as your production area. Once the quotation content is confirmed, provide us with your destination port.
Q: Do you have customer reviews or case studies available ?
A: Yes, we have many successful overseas cases and customers feedback, such as Uzbekistan, Malaysia, Vietnam, India, Philippines and so on. If you need, you can add my whatsapp number and I will send them to you.
Q: What is your main products ?
A: Our main products include complete equipments of fertilizer production line. There are many types of granulator and some auxiliary equipment (drying&cooling machine, screening machine, coating machine, packaging machine and so on).
Q: How to choose the right fertilizer equipment ?
A: Inder to choose the appropriate equipment, we need to know your fertilizer raw materials and production capacity, so that we can give you a right solution. It’s best for us if you can provide the production area.
