New organic fertilizer granulator agitator tooth drum combined granulator

Product Description:

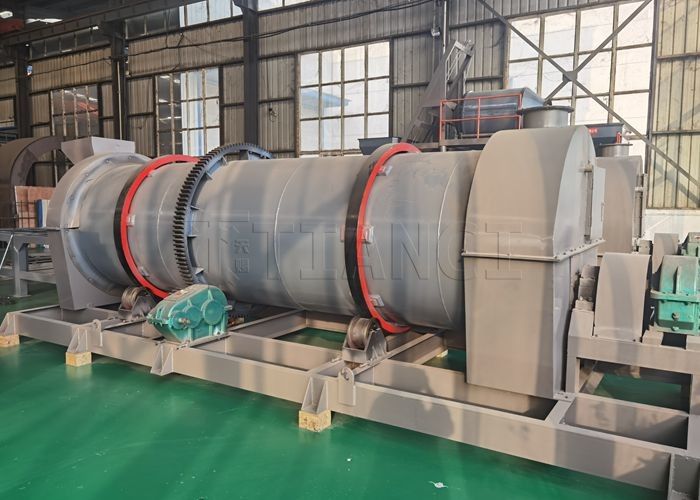

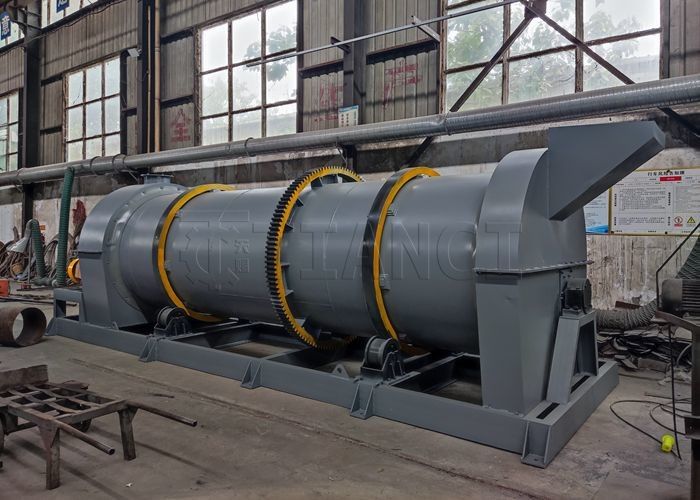

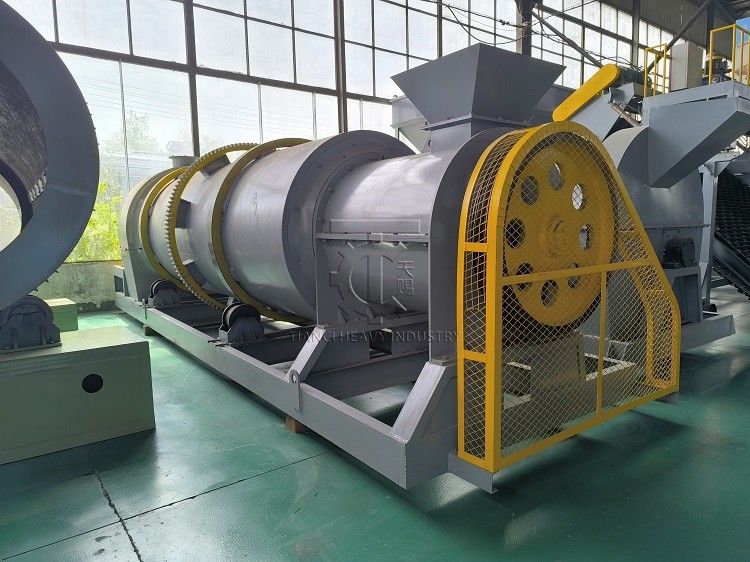

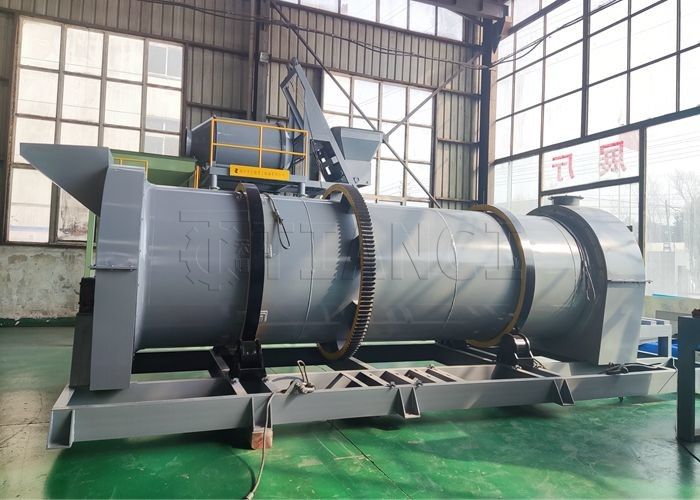

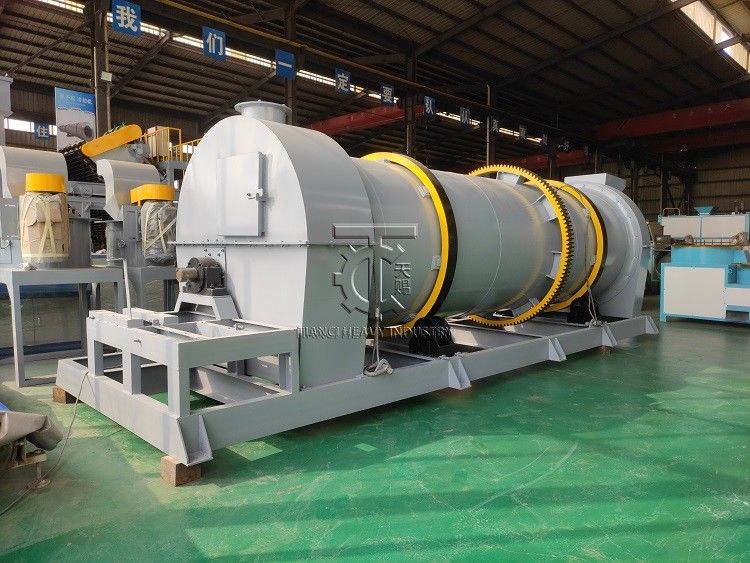

This series of granulators is a newly developed multi-purpose wet granulation equipment based on the YSL granulator developed and produced by Yuan. It not only improves the shortcomings of the original wet continuous push rod granulator in use, but also adopts the method of internal stirring teeth and external rotating drum in the second stage granulation section, which not only meets the quality requirements of granulation, but also solves the problem of some materials sticking to the wall due to excessive viscosity and humidity. The machine mainly consists of a uniform feeding part, a first-stage granulation section, a second-stage granulation section, a first-stage power part, a second-stage stirring tooth part, a second-stage cylinder transmission part, a granulation bin part, and a frame part.

The machine consists of a body part, a granulation rotor part, and a transmission part. The working principle is that the material enters the machine from the feed port at one end of the body, is continuously pushed by the granulation rotor, and performs mechanical movement with the casing to achieve the purpose of granulation, and the finished particles are pushed out of the machine at the other end of the body. The rotor is driven by the motor and reducer of the transmission device. The transmission part and the body part are mostly fixed on the same frame. This not only has a reasonable structure and stable operation, but also is easy to install. It is a fertilizer production equipment of the new era.

The organic fertilizer combined granulator is used to granulate various organic matter after fermentation. It breaks through the conventional organic matter granulation process. The raw materials do not need to be dried before granulation. The raw materials can be directly mixed after crushing to process spherical particles, which can save a lot of energy. The produced particles are spherical, with an organic content of up to 99%, realizing pure organic granulation. The organic particles can be embedded and grown together under certain conditions, and no adhesive is added during granulation. The particles are firm and can be screened after granulation, which reduces the drying energy consumption. The moisture content of the raw materials can be around 20%-40%.

Features:

The new organic fertilizer two-in-one granulator is a combined granulator product newly developed by our company.

1.It is designed and manufactured using a new wet continuous push rod granulation process. It uses the high-speed rotating mechanical stirring force and the friction generated thereby to continuously achieve mixing, granulation, spheroidization, densification, polishing and other processes in the machine to achieve the purpose of granulation;

2.It can not only granulate a variety of organic matter, but also produce compound fertilizer granules;

3.It can granulate crude fiber materials that are difficult to granulate using conventional equipment after fermentation, and it can also achieve a good granulation effect for raw materials such as humic acid and urban sludge.

Technical Parameters:

Applications:

This machine can not only granulate a variety of organic matter, but also produce compound fertilizer granules. At the same time, it can granulate crude fiber materials that are difficult to granulate using conventional equipment, such as crop straw, wine lees, furfural residue, fungus residue, medicine residue, animal feces, etc. after fermentation. It can also achieve good granulation effects on raw materials such as humic acid and urban sludge.

Support and Services:

Our Fertilizer Granulator Product Technical Support and Services are dedicated to ensuring that your experience with our product is efficient. We provide a comprehensive suite of services to assist with any technical challenges you may encounter during the operation of your Fertilizer Granulator. Our services include:

Technical Assistance: Free CAD design. Our team of skilled technicians is available to provide guidance and answer any questions related to the features, setup, and use of the Fertilizer Granulator. They can help troubleshoot issues and offer solutions to get your equipment up and running smoothly.

Operational Training: To help you get the most out of your investment, we offer operational training sessions. These sessions are designed to familiarize your staff with the granulator's functions, maintenance procedures, and safety protocols.

Parts and Repair Services: In the event that your machine requires repair or replacement parts, we provide timely assistance. We supply authentic, high-quality parts to ensure your granulator operates at its best. Our repair services are carried out by certified professionals who specialize in our Fertilizer Granulator systems.

We are committed to delivering exceptional technical support and services to ensure that your Fertilizer Granulator operates at peak performance. Our goal is to help you achieve optimal results and maximize the productivity of your agricultural operations.

Packing and Shipping:

Wooden package or full 20GP/40HQ container；

The Fertilizer Granulator is packaged in sturdy wooden crates to provide maximum protection during transportation. Each crate is designed to fit the specific dimensions of the granulator and is lined with shock-absorbing materials to prevent any damages during handling and shipping.

The crates are also sealed tightly to prevent any dust or moisture from entering and potentially affecting the quality of the product. We take extra care to package the granulator in a way that it can withstand rough handling and long-distance transportation.

We ship our Fertilizer Granulator through reliable and trusted shipping companies to ensure timely and safe delivery. Our team works closely with these companies to track and monitor the shipment to make sure it reaches its destination without any delays or damages.

FAQ:

Q: What are your company's advantage ?

A: We are professional fertilizer equipment manufacturer with more than 20 years production experience and 10 years exports experience. We have own factory which can produce high quality equipment with competitive prices.

Q: Can i visit your factory to test the quality ?

A: Sure, we sincerely welcome to your visiting. We can arrange the equipment testing according to your production needs.

Q: Do you have customer reviews or case studies available ?

A: Yes, we have many successful overseas cases and customers feedback, such as Uzbekistan, Malaysia, Vietnam, India, Philippines and so on. If you need, you can add my whatsapp number and I will send them to you.

Q: What is your main products ?

A: Our main products include complete equipments of fertilizer production line. There are many types of granulator and some auxiliary equipment (drying&cooling machine, screening machine, coating machine, packaging machine and so on).

Q: How to choose the right fertilizer equipment ?

A: Inder to choose the appropriate equipment, we need to know your fertilizer raw materials and production capacity, so that we can give you a right solution. It’s best for us if you can provide the production area.
