Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine
Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine
Basic Properties
Place of Origin:
China
Brand Name:
Tianci
Certification:
CE SGS ISO9001
Model Number:
ZG
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
T/T
Supply Ability:
30 set per month
Product Summary
Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine Product Description: The drum granulator can not only be used for the mixed granulation of various chemical compound fertilizer powder raw materials, but also for the granulation of organic compost. The material is added from ...
Product Custom Attributes
Highlight
Organic Compound Fertilizer Granulator Machine
,Ball Granules Granulator Machine
,Rotary Drum Granulator Machine
Features:
Simple Operation, High Productivity
Name:
Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine
Application:
Compound Organic Fertilizer Production
Capacity:
1-20t/h
Granule Shape:
Ball Type
Voltage:
380v/customized
Material:
Carbon Steel
Granulate Size:
2-10mm
Product Description
Detailed Specifications & Features

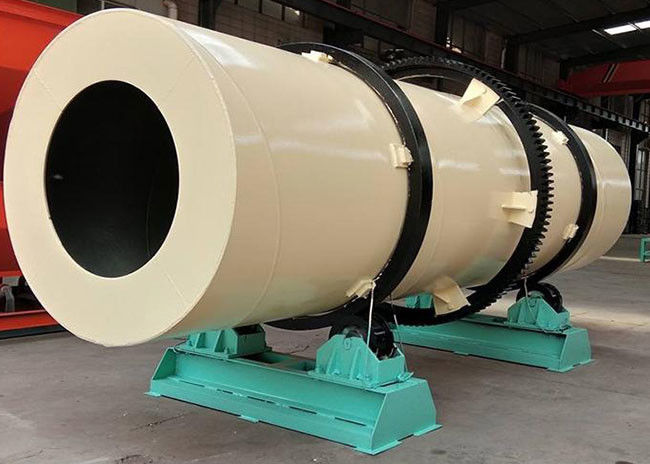

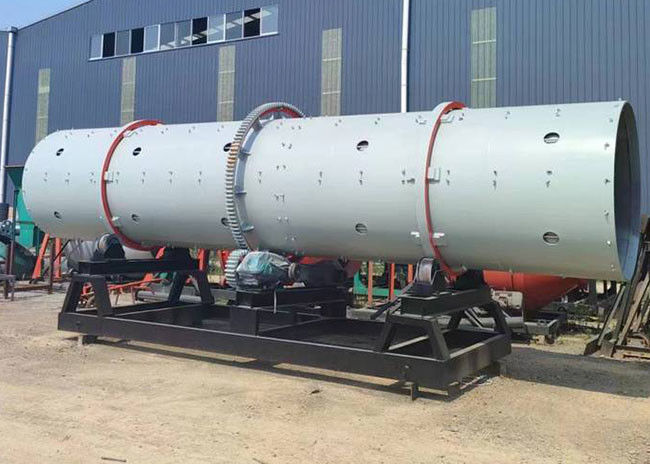

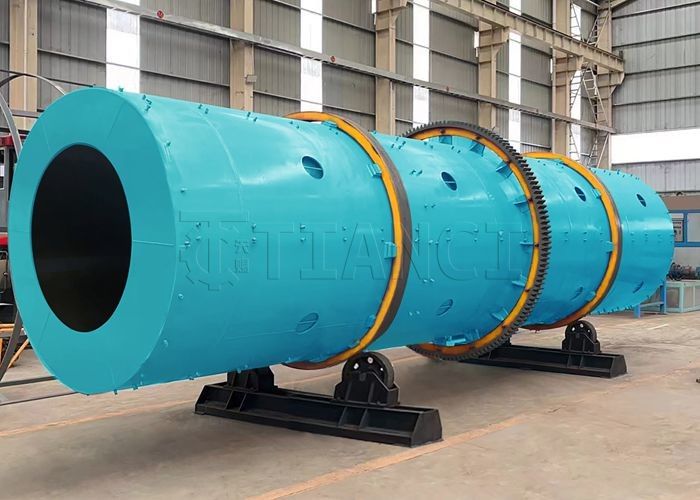

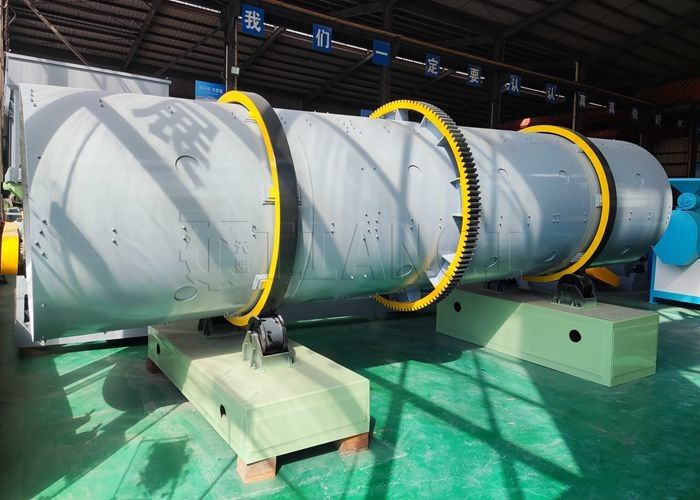

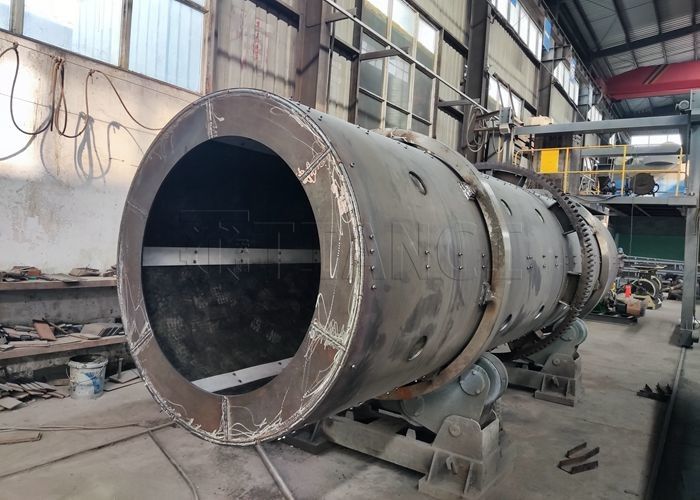

Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine
Product Description:
The drum granulator can not only be used for the mixed granulation of various chemical compound fertilizer powder raw materials, but also for the granulation of organic compost. The material is added from the feeding end, processed by the special structure inside the cylinder to form particles, and finally flows out through the discharge port. Due to the continuous entry of materials and the continuous rotation of the granulator, large-scale production can be achieved.
Features:
- High granulation rate, with a small amount of return material, can be re granulated;
- Heating with steam to increase the temperature of the material, reducing the moisture content of the material after balling, and improving the drying efficiency;
- Using rubber engineering plastic as the inner lining, the raw material is not easy to stick to the cylinder, and it plays a role in anti-corrosion and insulation;
- Large output, low energy consumption, and low maintenance costs；
- Long service life, convenient operation and maintenance.
Technical Parameters:
| Model |
Dip angle
(°)
|
Internal diameter (m) |
Length
(m)
|
Speed
(r/min)
|
Power
(kw)
|
Capacity
(t/h)
|
Outline dimension
(L*W*H)
|
| ZG1.2*4 | 2-2.5 | 1.2 | 4 | 17 | 5.5 | 1-3 | 4.6*2.2*2.0 |
| ZG1.4*5 | 2-2.5 | 1.4 | 5 | 14 | 7.5 | 3-5 | 4.8*2.8*2.3 |
| ZG1.5*6 | 2-2.5 | 1.6 | 6 | 11.5 | 11 | 5-8 | 7.0*3.2*3.1 |
| ZG1.8*7 | 2-2.5 | 1.8 | 7 | 11.5 | 15 | 8-10 | 8.5*3.5*3.3 |
| ZG2.0*8 | 2-2.5 | 2.0 | 8 | 11 | 18.5 | 10-15 | 9.1*3.6*3.5 |
| ZG2.2*8 | 2-2.5 | 2.2 | 8 | 10.5 | 22 | 15-20 | 9.5*4.4*3.9 |
Applications:

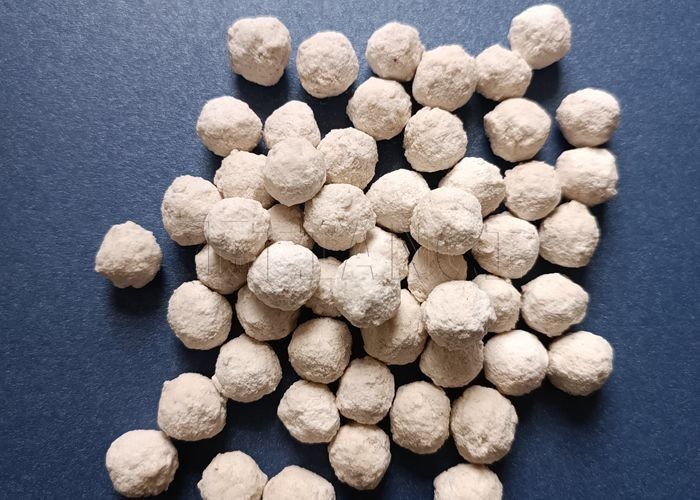

Suitable for processing powdery materials into ball type granules, widely used in compound fertilizer plants, organic fertilizer plants, sludge waste treatment plants and mines, chemical industry, cat little, animal feed and other industries.
